BL-1型 波形繞線機

BL-1 Model Wave Shape Coil Winding Machine

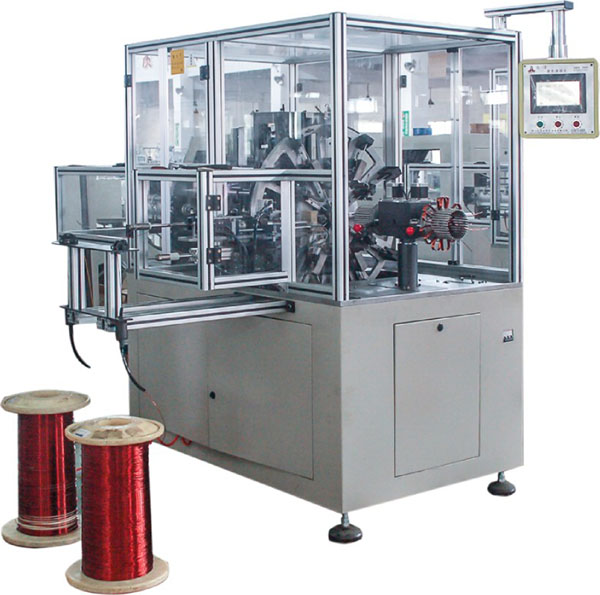

本機適用于汽車發電機三相定子波形繞組的自動繞線和分相推入線爪的專用設備。采用國際先進的雙滑輪雙鋼絲設計，鋼絲使用壽命長，可繞線徑粗，穩定可靠，采用PLC程控，彩色觸摸屏設定參數，伺服電機繞線和排線，自動分相推入工裝，自動剪斷，自動調頭、繞線成形后分相推入線爪，三相一次完成兩只定子線圈，并有故障自診斷顯示功能。

This machine is suitable for automatic winding of the three-phase stator wave windings of the automobile generator and automatic multi-times pushing coils to claw. Adopting international advanced double pulley double steel wire design, the steel wire has long service life. This machine is suitable and reliable for winding thick wire. It adopts PLC program control, color touch screen for setting parameters, servo motor for winding and arraying. It has functions of automatic multi-times pushing into tooling, automatic cutting, automatic turning, automatic winding and automatic pushing into the claws, and fault self-diagnosis display. It can complete of two three-phase stators coils at one time.

技術參數/Technicai Parameters
