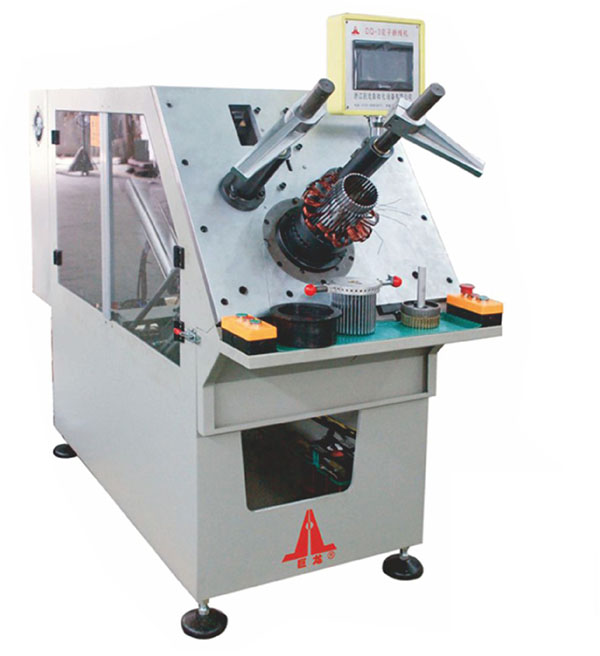

（三相快速換模）DQ-2型 定子嵌線機
DQ-2 Three Phase Stator Wire Inserting Machine
本機適用于汽車發電機定子三相一次性嵌入和蓋槽楔的專用設備。采用三菱PLC程控.彩色觸摸屏操作及故障診斷功能，伺服電機驅動滾珠絲桿及推頭推入線圈入槽，行程控制準確，速度均勻，采用一體化嵌線工裝，更換簡單方便，工裝堅固，使用壽命長，工作效率高。
Suitable for automobile generator stator three-phase one-time embedded and cover groove wedge of special equipment. Mitsubishi PLC control. Color touch screen operation and fault diagnosis, servo motor drive ball screw and push into the coil into the slot, the stroke control is accurate, uniform speed, the use of integrated wire tooling, replacement is simple and convenient, long service life, high efficiency.
技術參數/Technicai Parameters
| 輸入電壓Input voltage | AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
4kw |
| 定子內徑Stator ID | Φ60~Φ120mm |
| 定子外徑Stator OD | ≤Φ210 mm |
| 鐵芯厚度Core thickness |
20~130mm |
| 槽數Slots | 36/48 |
| 線徑范圍Wire Range |
0.15~1.6mm |
