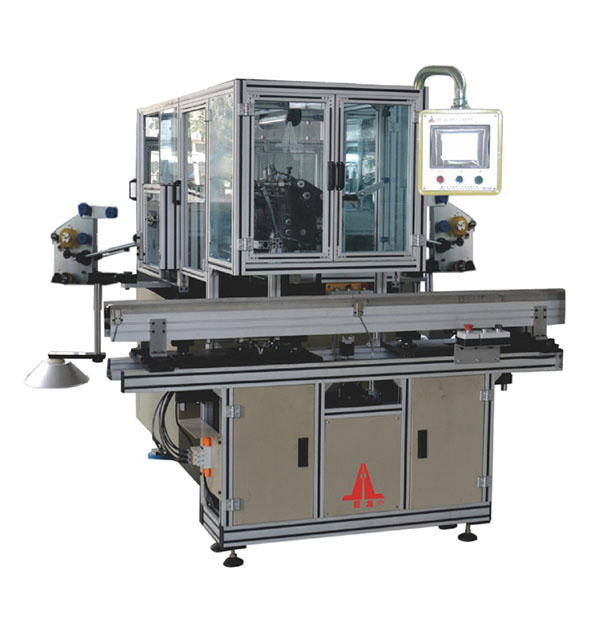

（帶托架線機械手）ZB-302S型 全自動轉子繞線機
ZB-302S Full Automatic Rotor Wire Winding Machine
適用于偶數槽電機帶鉤換向器轉子的雙飛叉自動繞線。本機可與其它設備連接，采用機械手完成自動輸送裝夾、繞線、下料、自動化程度高。采用三菱三伺服系統，PLC程控，彩色觸摸屏顯示，自動定位、分度、繞線、掛鉤、自動拉斷，所有流程連續工作，采用脫卸式更換工裝，漲力松緊可調，繞線均勻，生產效率高。
Applicable to the slotted motor with a hook commutator rotor double flywheel automatic winding. The machine can be connected with other equipment, the use of mechanical hand to complete automatic transmission clamping, winding, cutting, a high degree of automation. All the processes are continuous working, the use of detachable type change tooling, tension adjustable tension, winding evenly, the production of the three servo system, PLC program, color touch screen display, automatic positioning, indexing, winding, hook, efficient.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
3kw |
| 疊片厚度Lamination thickness | 20~60mm |
| 換向器外徑Commutator OD |
Φ20~Φ50mm |
| 轉子直徑Rotor Diameter |
Φ20~Φ80mm |
| 鐵芯厚度Core thickness |
10~80mm |
| 軸徑Shaft diameter |
Φ3~Φ12 |
|
線徑Wire |
Φ0.1~Φ1.05 |
