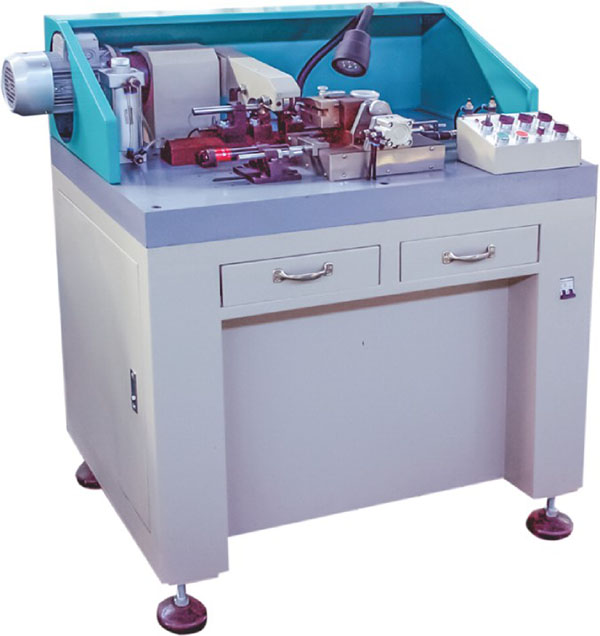

ZDJ-4型 單刀氣動換向器精車機
ZDJ-4 Pneumatic Single Cutter Commutator Turning Machine
適用于各類電機換向器高精度自動車削的專用設備。采用進口PLC程控，單刀車削，三菱變頻無級調速，硬質合金V形塊支撐轉子軸，軸承檔有自動噴油裝置，百分表顯示進刀車削量，進口阻尼氣缸控制走刀速度，車削速度均勻，配置高硬度寶石刀頭，皮帶摩擦轉子外圓自動車削，所有動作一次完成，人工上下工件，操作簡單方便。
Applicable to all types of motor commutator high-precision automatic turning of special equipment.It adopts imported PLC,high hardness gemstone head of the cutter, one workstation turning, Mitsubishi frequency stepless speed regulation, carbide V-block support rotor shaft, automatic oil injection device on bearing, turing feed dial indicator, imports damping cylinder control the cutting speed, stable turning speed, belt friction make rotor cylindrical automatic turning, all actions can be done in one time, artificial loading and unloading, easy operation.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5-0.7Mpa |
|
總功率Total power |
1.5KW |
| 轉子外徑Rotor OD | Φ20-Φ80mm |
| 車削粗糙度Turning roughness |
Ra0.4 |
| 換向器長度Commutator length |
≤30mm |
| 換向器直徑Commutator diameter |
5-40mm |
| 工件線速度Workpiece line speed |
0~600m/min |
| 轉子軸徑Rotor shaft diameter |
3~20mm |
