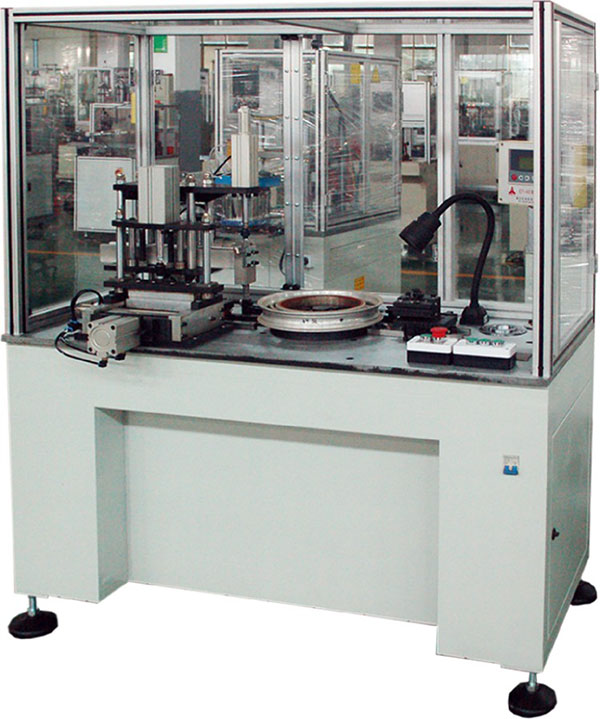

CT-40型 輪鼓磁條自動插入機
CT-40 Wheel Hub Magnet Bar Automatic Insertion Machine
適用于電動自行車無刷電機轉子內腔充好磁的稀土磁條的自動插入。采用三菱PLC程控，液晶文本修改參數，本機有整形、自動分片、插磁條、自動分度、刮余膠等工序，使插入的磁條分布均勻，可設定隔片插和聯排插，機械與光電開關聯鎖，操作方便，安全可靠，生產效率高。
It is suitable for the automatic insertion of rare earth magnetic strips in the rotor cavity of the brushless motor of electric bicycle. It adopts Mitsubishi PLC program control and LCD text modification parameters. The machine has the functions of shaping, auto-slicing, inserting magnetic strip, auto indexing and scrapping glue. The inserted magnetic strips can be evenly distributed. Plug, mechanical and photoelectric switch interlock, easy to operate, safe and reliable, high production efficiency.
技術參數/Technicai Parameters
| 電源電壓Supply voltage |
AC220±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
1.5kw |
|
輪轂內徑Hub ID |
≤Φ200mm(特殊定制) |
|
輪轂外徑Hub OD |
≤Φ400mm(特殊定制) |
